QDialogButtonBox¶

The QDialogButtonBox class is a widget that presents buttons in a layout that is appropriate to the current widget style. More…

Synopsis¶

Functions¶

def addButton (button)
def addButton (button, role)
def addButton (text, role)
def button (which)
def buttonRole (button)
def buttons ()
def centerButtons ()
def clear ()
def orientation ()
def removeButton (button)
def setCenterButtons (center)
def setOrientation (orientation)
def setStandardButtons (buttons)
def standardButton (button)
def standardButtons ()

Signals¶

def accepted ()
def clicked (button)
def helpRequested ()
def rejected ()

Detailed Description¶

Dialogs and message boxes typically present buttons in a layout that conforms to the interface guidelines for that platform. Invariably, different platforms have different layouts for their dialogs. QDialogButtonBox allows a developer to add buttons to it and will automatically use the appropriate layout for the user’s desktop environment.

Most buttons for a dialog follow certain roles. Such roles include:

Accepting or rejecting the dialog.

Asking for help.

Performing actions on the dialog itself (such as resetting fields or applying changes).

There can also be alternate ways of dismissing the dialog which may cause destructive results.

Most dialogs have buttons that can almost be considered standard (e.g. OK and Cancel buttons). It is sometimes convenient to create these buttons in a standard way.

There are a couple ways of using QDialogButtonBox . One ways is to create the buttons (or button texts) yourself and add them to the button box, specifying their role.
findButton = QPushButton(self.tr("&Find"))
findButton.setDefault(True)

moreButton = QPushButton(self.tr("&More"))
moreButton.setCheckable(True)

moreButton.setAutoDefault(False)

buttonBox = QDialogButtonBox(Qt.Vertical)
buttonBox.addButton(findButton, QDialogButtonBox.ActionRole)
buttonBox.addButton(moreButton, QDialogButtonBox.ActionRole)
Alternatively, QDialogButtonBox provides several standard buttons (e.g. OK, Cancel, Save) that you can use. They exist as flags so you can OR them together in the constructor.
self.buttonBox = QDialogButtonBox(QDialogButtonBox.Ok

                             | QDialogButtonBox.Cancel)

self.buttonBox.accepted.connect(self.accept)
self.buttonBox.rejected.connect(self.reject)
You can mix and match normal buttons and standard buttons.

Currently the buttons are laid out in the following way if the button box is horizontal:

Button box laid out in horizontal GnomeLayout

Button box laid out in horizontal KdeLayout

Button box laid out in horizontal MacLayout

Button box laid out in horizontal WinLayout

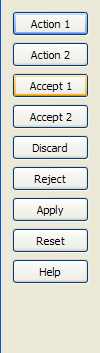

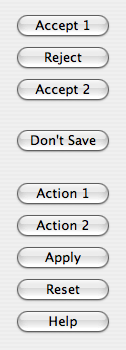

The buttons are laid out the following way if the button box is vertical:

GnomeLayout

KdeLayout

MacLayout

WinLayout

Additionally, button boxes that contain only buttons with ActionRole or HelpRole can be considered modeless and have an alternate look on macOS:

modeless horizontal MacLayout

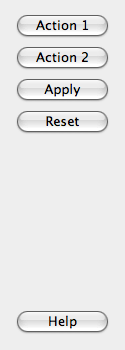

modeless vertical MacLayout

When a button is clicked in the button box, the clicked() signal is emitted for the actual button is that is pressed. For convenience, if the button has an AcceptRole , RejectRole , or HelpRole , the accepted() , rejected() , or helpRequested() signals are emitted respectively.

If you want a specific button to be default you need to call setDefault() on it yourself. However, if there is no default button set and to preserve which button is the default button across platforms when using the autoDefault property, the first push button with the accept role is made the default button when the QDialogButtonBox is shown,

See also

QMessageBox QPushButton QDialog

class PySide2.QtWidgets.QDialogButtonBox(buttons[, parent=None])¶

PySide2.QtWidgets.QDialogButtonBox(buttons, orientation[, parent=None])

PySide2.QtWidgets.QDialogButtonBox([parent=None])

PySide2.QtWidgets.QDialogButtonBox(orientation[, parent=None])

param parent:

PySide2.QtWidgets.QWidget

param buttons:

StandardButtons

param orientation:

Orientation

Constructs a horizontal button box with the given parent , containing the standard buttons specified by buttons .

See also

orientation addButton()

Constructs a button box with the given orientation and parent , containing the standard buttons specified by buttons .

See also

orientation addButton()

Constructs an empty, horizontal button box with the given parent .

See also

orientation addButton()

Constructs an empty button box with the given orientation and parent .

See also

orientation addButton()

PySide2.QtWidgets.QDialogButtonBox.ButtonRole¶

This enum describes the roles that can be used to describe buttons in the button box. Combinations of these roles are as flags used to describe different aspects of their behavior.

Constant	Description
QDialogButtonBox.InvalidRole	The button is invalid.
QDialogButtonBox.AcceptRole	Clicking the button causes the dialog to be accepted (e.g. OK).
QDialogButtonBox.RejectRole	Clicking the button causes the dialog to be rejected (e.g. Cancel).
QDialogButtonBox.DestructiveRole	Clicking the button causes a destructive change (e.g. for Discarding Changes) and closes the dialog.
QDialogButtonBox.ActionRole	Clicking the button causes changes to the elements within the dialog.
QDialogButtonBox.HelpRole	The button can be clicked to request help.
QDialogButtonBox.YesRole	The button is a “Yes”-like button.
QDialogButtonBox.NoRole	The button is a “No”-like button.
QDialogButtonBox.ApplyRole	The button applies current changes.
QDialogButtonBox.ResetRole	The button resets the dialog’s fields to default values.

See also

StandardButton

PySide2.QtWidgets.QDialogButtonBox.StandardButton¶

These enums describe flags for standard buttons. Each button has a defined ButtonRole .

Constant	Description
QDialogButtonBox.Ok	An “OK” button defined with the `AcceptRole` .
QDialogButtonBox.Open	An “Open” button defined with the `AcceptRole` .
QDialogButtonBox.Save	A “Save” button defined with the `AcceptRole` .
QDialogButtonBox.Cancel	A “Cancel” button defined with the `RejectRole` .
QDialogButtonBox.Close	A “Close” button defined with the `RejectRole` .
QDialogButtonBox.Discard	A “Discard” or “Don’t Save” button, depending on the platform, defined with the `DestructiveRole` .
QDialogButtonBox.Apply	An “Apply” button defined with the `ApplyRole` .
QDialogButtonBox.Reset	A “Reset” button defined with the `ResetRole` .
QDialogButtonBox.RestoreDefaults	A “Restore Defaults” button defined with the `ResetRole` .
QDialogButtonBox.Help	A “Help” button defined with the `HelpRole` .
QDialogButtonBox.SaveAll	A “Save All” button defined with the `AcceptRole` .
QDialogButtonBox.Yes	A “Yes” button defined with the `YesRole` .
QDialogButtonBox.YesToAll	A “Yes to All” button defined with the `YesRole` .
QDialogButtonBox.No	A “No” button defined with the `NoRole` .
QDialogButtonBox.NoToAll	A “No to All” button defined with the `NoRole` .
QDialogButtonBox.Abort	An “Abort” button defined with the `RejectRole` .
QDialogButtonBox.Retry	A “Retry” button defined with the `AcceptRole` .
QDialogButtonBox.Ignore	An “Ignore” button defined with the `AcceptRole` .
QDialogButtonBox.NoButton	An invalid button.

See also

ButtonRole standardButtons

PySide2.QtWidgets.QDialogButtonBox.ButtonLayout¶

This enum describes the layout policy to be used when arranging the buttons contained in the button box.

Constant	Description
QDialogButtonBox.WinLayout	Use a policy appropriate for applications on Windows.
QDialogButtonBox.MacLayout	Use a policy appropriate for applications on macOS.
QDialogButtonBox.KdeLayout	Use a policy appropriate for applications on KDE.
QDialogButtonBox.GnomeLayout	Use a policy appropriate for applications on GNOME.
QDialogButtonBox.AndroidLayout	Use a policy appropriate for applications on Android. This enum value was added in Qt 5.10.

The button layout is specified by the current style . However, on the X11 platform, it may be influenced by the desktop environment.

PySide2.QtWidgets.QDialogButtonBox.accepted()¶

PySide2.QtWidgets.QDialogButtonBox.addButton(button, role)¶

Parameters:

button – PySide2.QtWidgets.QAbstractButton
role – ButtonRole

Adds the given button to the button box with the specified role . If the role is invalid, the button is not added.

If the button has already been added, it is removed and added again with the new role.

Note

The button box takes ownership of the button.

See also

removeButton() clear()

PySide2.QtWidgets.QDialogButtonBox.addButton(button)

Parameters:: button – StandardButton
Return type:: PySide2.QtWidgets.QPushButton

Adds a standard button to the button box if it is valid to do so, and returns a push button. If button is invalid, it is not added to the button box, and zero is returned.

See also

removeButton() clear()

PySide2.QtWidgets.QDialogButtonBox.addButton(text, role)

Parameters:

text – str
role – ButtonRole

Return type:

PySide2.QtWidgets.QPushButton

PySide2.QtWidgets.QDialogButtonBox.button(which)¶

Parameters:: which – StandardButton
Return type:: PySide2.QtWidgets.QPushButton

Returns the QPushButton corresponding to the standard button which , or None if the standard button doesn’t exist in this button box.

PySide2.QtWidgets.QDialogButtonBox.buttonRole(button)¶

Parameters:: button – PySide2.QtWidgets.QAbstractButton
Return type:: ButtonRole

Returns the button role for the specified button . This function returns InvalidRole if button is None or has not been added to the button box.

See also

buttons() addButton()

PySide2.QtWidgets.QDialogButtonBox.buttons()¶

Return type:

Returns a list of all the buttons that have been added to the button box.

PySide2.QtWidgets.QDialogButtonBox.centerButtons()¶

Return type:: bool

This property holds whether the buttons in the button box are centered.

By default, this property is false . This behavior is appropriate for most types of dialogs. A notable exception is message boxes on most platforms (e.g. Windows), where the button box is centered horizontally.

See also

QMessageBox

PySide2.QtWidgets.QDialogButtonBox.clear()¶: Clears the button box, deleting all buttons within it.

See also

removeButton() addButton()

PySide2.QtWidgets.QDialogButtonBox.clicked(button)¶

Parameters:: button – PySide2.QtWidgets.QAbstractButton

PySide2.QtWidgets.QDialogButtonBox.helpRequested()¶

PySide2.QtWidgets.QDialogButtonBox.orientation()¶

Return type:: Orientation

This property holds the orientation of the button box.

By default, the orientation is horizontal (i.e. the buttons are laid out side by side). The possible orientations are Horizontal and Vertical .

PySide2.QtWidgets.QDialogButtonBox.rejected()¶

PySide2.QtWidgets.QDialogButtonBox.removeButton(button)¶

Parameters:: button – PySide2.QtWidgets.QAbstractButton

Removes button from the button box without deleting it and sets its parent to zero.

See also

clear() buttons() addButton()

PySide2.QtWidgets.QDialogButtonBox.setCenterButtons(center)¶

Parameters:: center – bool

This property holds whether the buttons in the button box are centered.

By default, this property is false . This behavior is appropriate for most types of dialogs. A notable exception is message boxes on most platforms (e.g. Windows), where the button box is centered horizontally.

See also

QMessageBox

PySide2.QtWidgets.QDialogButtonBox.setOrientation(orientation)¶

Parameters:: orientation – Orientation

This property holds the orientation of the button box.

By default, the orientation is horizontal (i.e. the buttons are laid out side by side). The possible orientations are Horizontal and Vertical .

PySide2.QtWidgets.QDialogButtonBox.setStandardButtons(buttons)¶

Parameters:: buttons – StandardButtons

This property holds collection of standard buttons in the button box.

This property controls which standard buttons are used by the button box.

See also

addButton()

PySide2.QtWidgets.QDialogButtonBox.standardButton(button)¶

Parameters:: button – PySide2.QtWidgets.QAbstractButton
Return type:: StandardButton

Returns the standard button enum value corresponding to the given button , or NoButton if the given button isn’t a standard button.

PySide2.QtWidgets.QDialogButtonBox.standardButtons()¶

Return type:: StandardButtons

This property holds collection of standard buttons in the button box.

This property controls which standard buttons are used by the button box.

See also

addButton()
